We offer comprehensive range of tubes and pipes, along with the fittings and accessories. The offered range is manufactured utilizing high quality of raw materials. When it comes to hydraulic and instrumentation systems, safety, integrity and reliability are our top priorities.

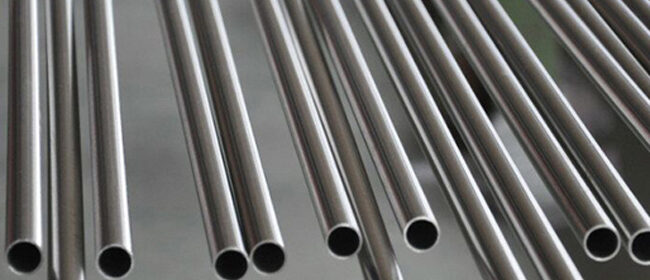

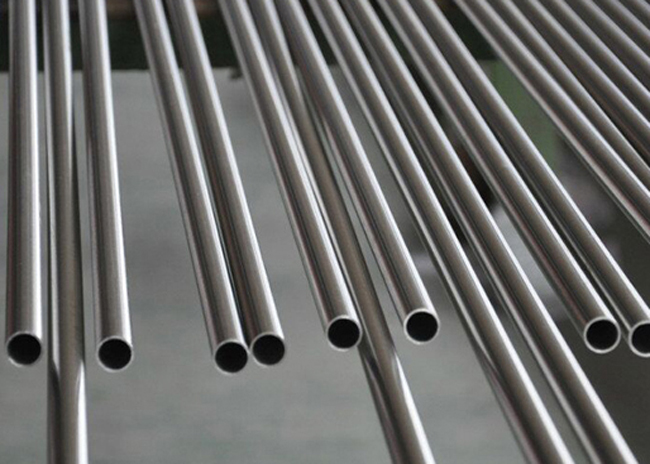

Tubes and Pipes
Offering a comprehensive range of tubes and pipes.
– Superior grade of raw materials, various choices for selection
– Seamed and seamless
– Offered in inch and metric sizes
– Pressure up to 20,000 PSI, higher pressure available for ordering
PARKER Legris provides users with a comprehensive range suitable for most application in order to meet the requirement of various field such as automation industries, assembly and packaging machines industries, liquid food circuits industries, automotive process, etc. Materials offers nylon, polyurethane, polyethylene, fluoropolymer and etc. Special material can be made upon request as per customer requirement. Various size is made available from 4 mm to 12 mm and 3/16” to 1/2”.
The flareless bite type fitting was pioneered by Ermeto in Germany in the early 1930’s. When Parker Hannifin acquired Ermeto, it introduced the EO fittings to the US. Today, the EO fittings are the most widely used bite type fittings in the world. The EO progressive ring fitting is a flareless metric fitting (for metric tube) that consists of a body, a progressive ring (ferrule) and a nut. On assembly, two cutting edges of the progressive ring “bite” into the outer surface of the tube ensuring the necessary holding power and seal for high operating pressures.
Instrumentation Tube Fittings designed as leak-free connections for process, power and instrumentation applications. These single and two ferrule fittings are manufactured to the highest quality standards and are available in a broad range of sizes, materials and configurations. The Parker CPI™/A-LOK® tube fitting has been specifically designed for use on instrumentation, process and control systems, analysers and environmental equipment employed in chemical, petroleum, power generating and pulp and paper plants. CPI™/A-LOK® fittings have also been used extensively in other applications and industries wherever high reliability and quality are required.
Quick and easy as well as secure installation of pipes, tubes, hoses, cables and other flexible and rigid components with outside diameters up to 1016 mm / 40.00 inch. Their vibration and noise reducing features are appreciated as being an important contribution to environmental protection and occupational health and safety. The processing of fire-proof clamp body materials, tested and approved according to several international fire-protection standards (such as BS 6853, EN 45545-2, UL 94) is only one of the many particular strengths of STAUFF. STAUFF guarantees prompt service, even for customized solutions according to customer’s specifications or based on our in-house development.
